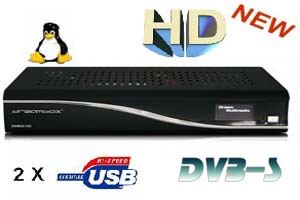

Terminal DREAMBOX 800 Haute Définition :
300 MHz MIPS Processor :
- Linux Operating System
- OLED - Display
- MPEG-2 / H.264 Hardware decoding
- Tuner: DVB-S, optional: DVB-C, DVB-T
- Tuner Module, Plug&Play
- 1 x Smartcard-Reader
- V.24/RS232 Interface
- 10/100Mbit Ethernet Interface
- 1 x Scart (RGB, FBAS or S-Video)
- DVI
- 2 x USB 2.0
- Analog modem
- S/PDIF Interface for digital bit stream out (AC-3)
- 64 MByte Flash, 256 MByte RAM
- SATA
- For use either as internal SATA HDD 2,5“
- Or to use for extern eSATA
- Unlimited channel lists for TV/Radio
- Channel-change time < 1 second
- Automatic service scan
- Directly bouquet-lists
- EPG (electronic program guide)
- Multiple LNB-Switching control (supports DiSEqC)
- OSD in many languages and skin-support
- Videotext Decoder
- Extern 12V power supply
DreamBox DM800 Technical Data :
DBS-Tuner mit DVB-S2:
- Frequency Range 950 .... 2150 MHz
- Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)
- Symbol rate DVB-S: 2 ... 45 Mbaud/s, SCPC/ MCPC
- DVB-S2: 10 – 31 Mbaud/s (8PSK) , 10 –30 Mbaud/s (QPSK)
Video decoder :
- Video Compression MPEG-2 and MPEG-1 compatible, H.246
- Video Formats 4:3 / 16:9
- Letterbox for 4:3 TV-Device
Audio decoder :
- Audio compression MPEG-1 & MPEG-2 Layer I and II, MP3
- Audio Mode Dual (main/sub), Stereo
- Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Output analog :
- Output Level L/R 0,5 Vss on 600 Ohm
- THD > 60 dB (1 kHz)
- Crosstalk < -65 dB
Output digital:
- Output Level 0,5 Vss on 75 Ohm
- Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
- S/PDIF-Output optical, Toslink
Video parameter:
- Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
- Teletext filter in conformity with ETS 300 472 Standard
TV-Scart:
- Output: FBAS, RGB, S-Video
Serielle Interface RS 232:
- Typ RS232 bidirectional
- Bitrate 115,2 kBit/s max.
- Plug Connector SUB-D-9
- Function: Update of Firmware
Ethernet:
- 10/100 MBit compatible interface
- Function: Update of Firmware
Analoge modem:
analoge modem for Internet connection
SATA Interface:
- Ffor use either as internal HDD 2,5“ or eSATAor internal 2,5" HDD
- USB
- 2 x USB 2.0 Host
LNB power and polarisation per tuner:
- LNB Current 500mA max.; short-circuit-protected
- LNB Voltage vertical < 14V no load, > 11,5V at 400mA
- LNB Voltage horizontal < 20V no load, > 17,3V at 400mA
Count of active satellite position:
- DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION
- DiSEqC - Rotor Control
Power consumption:
External PSU
- Input:
110-240V AC / 50-60Hz / 0,6A
- Output:
12V = / 3,0A
Physical specification :
- Ambient Temperature +15°C...+35°C
- Humidity < 80%
- Size (W x D x H): 195 mm x 140 mm x 40 mm
- Weight: 1,8 kg without HDD
|
